JE, Yamaha, 97.00 mm Bore, 1 Cyl. Kit

SKU: 366510

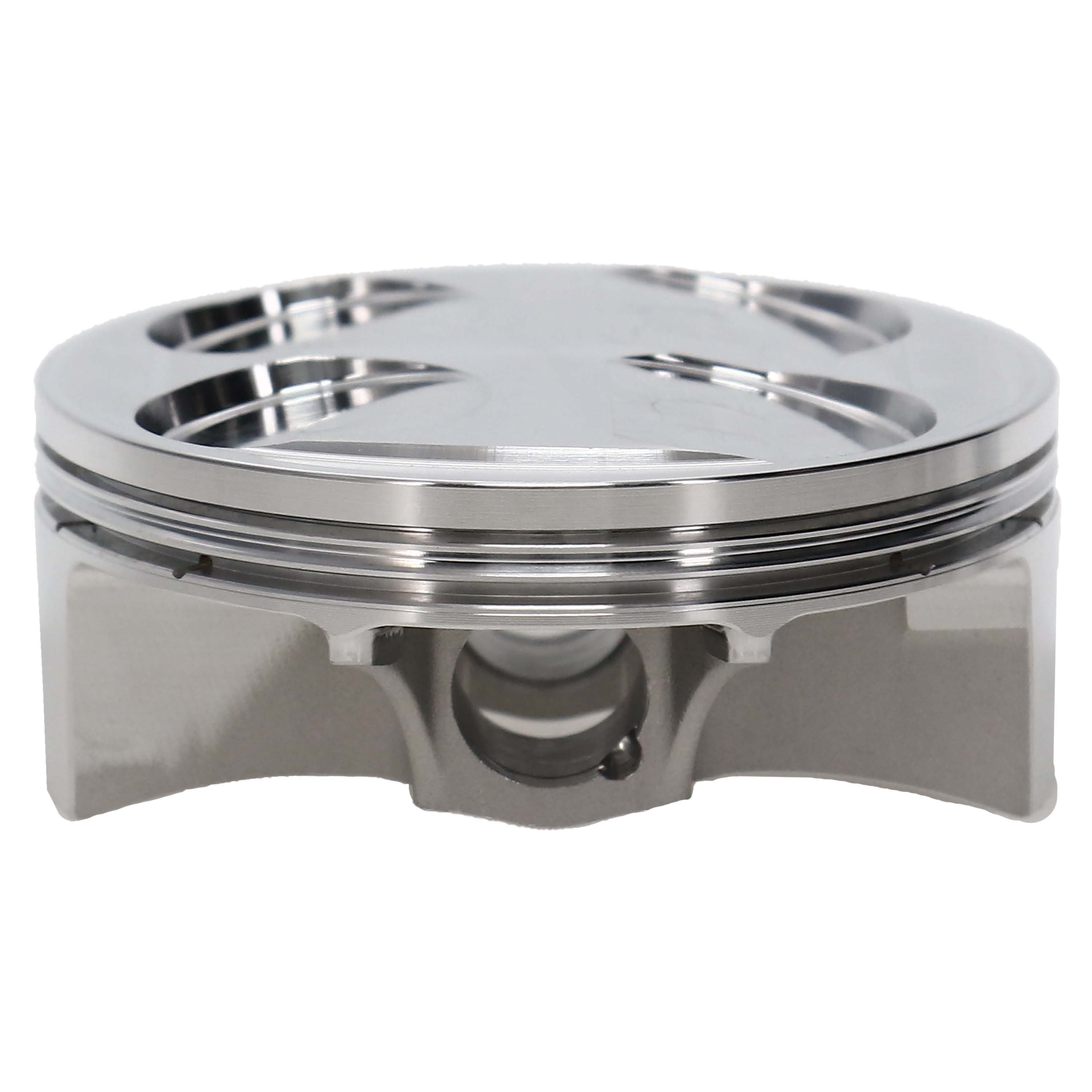

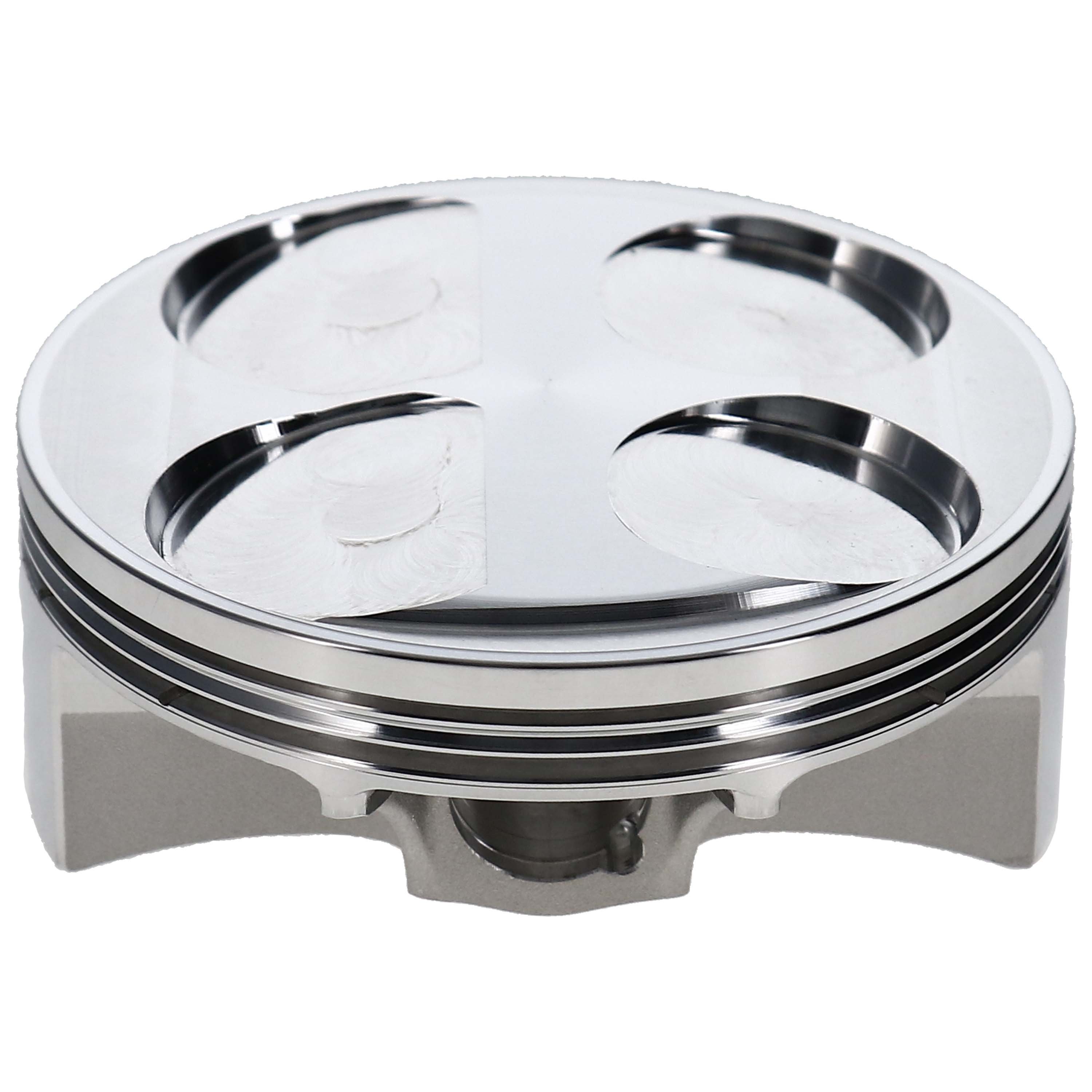

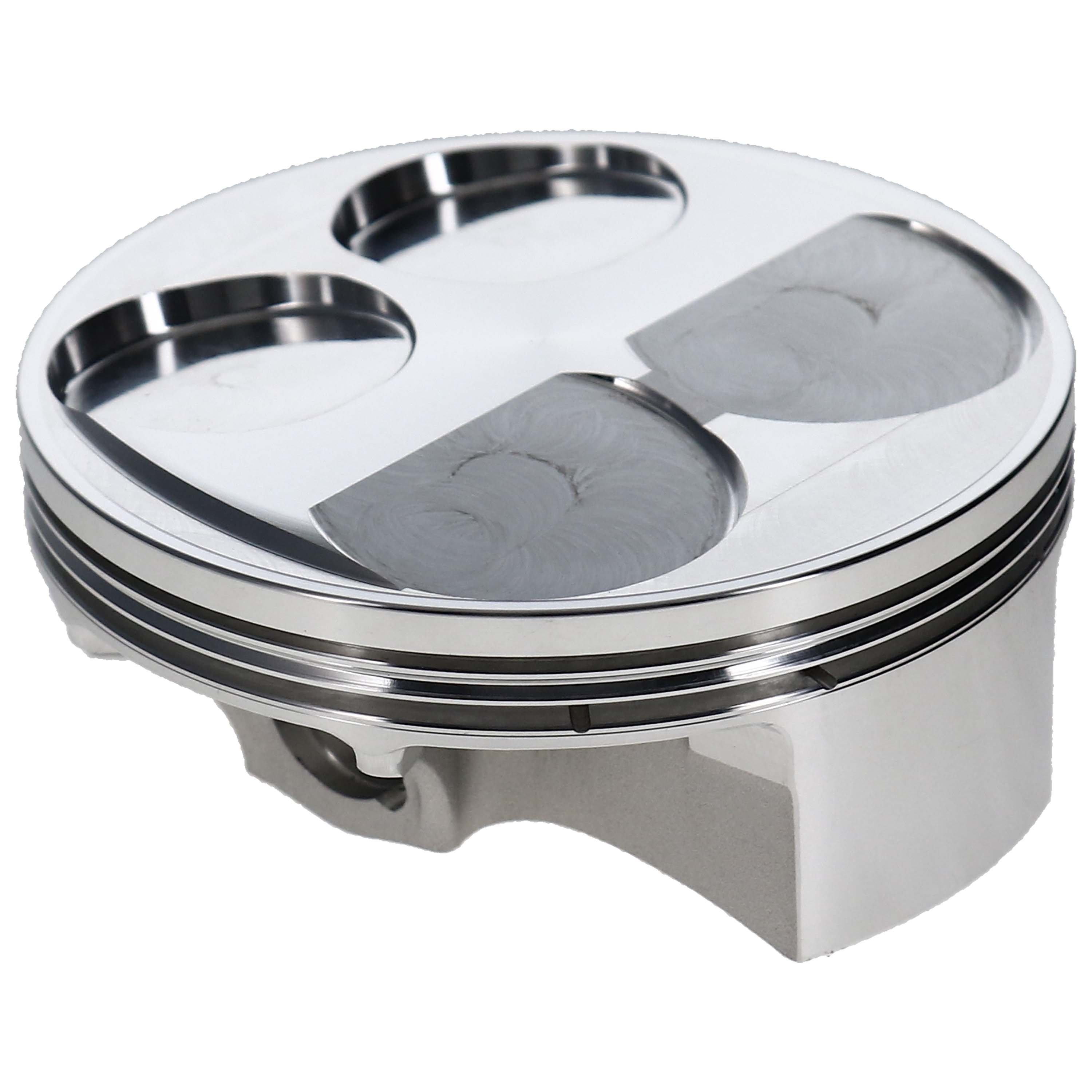

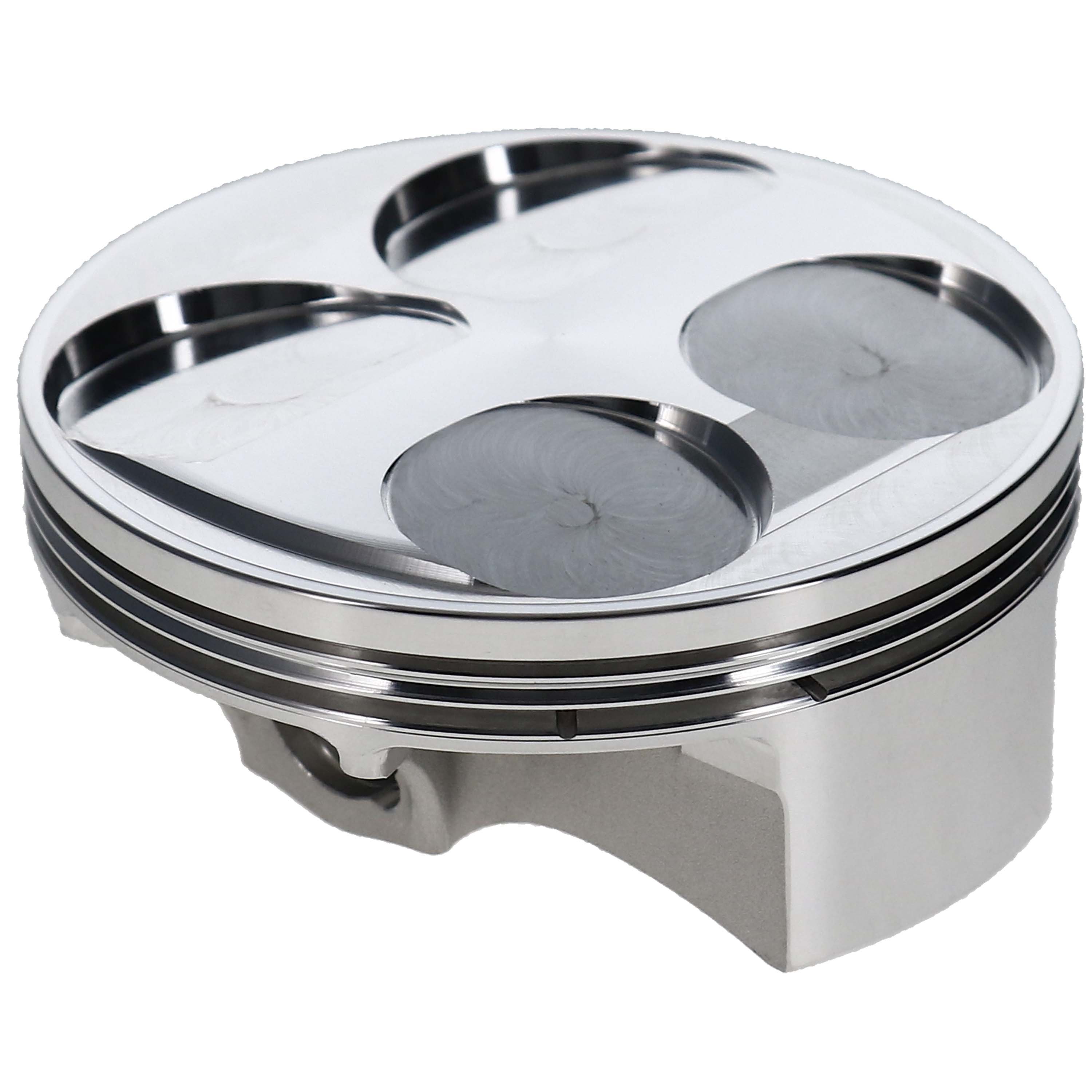

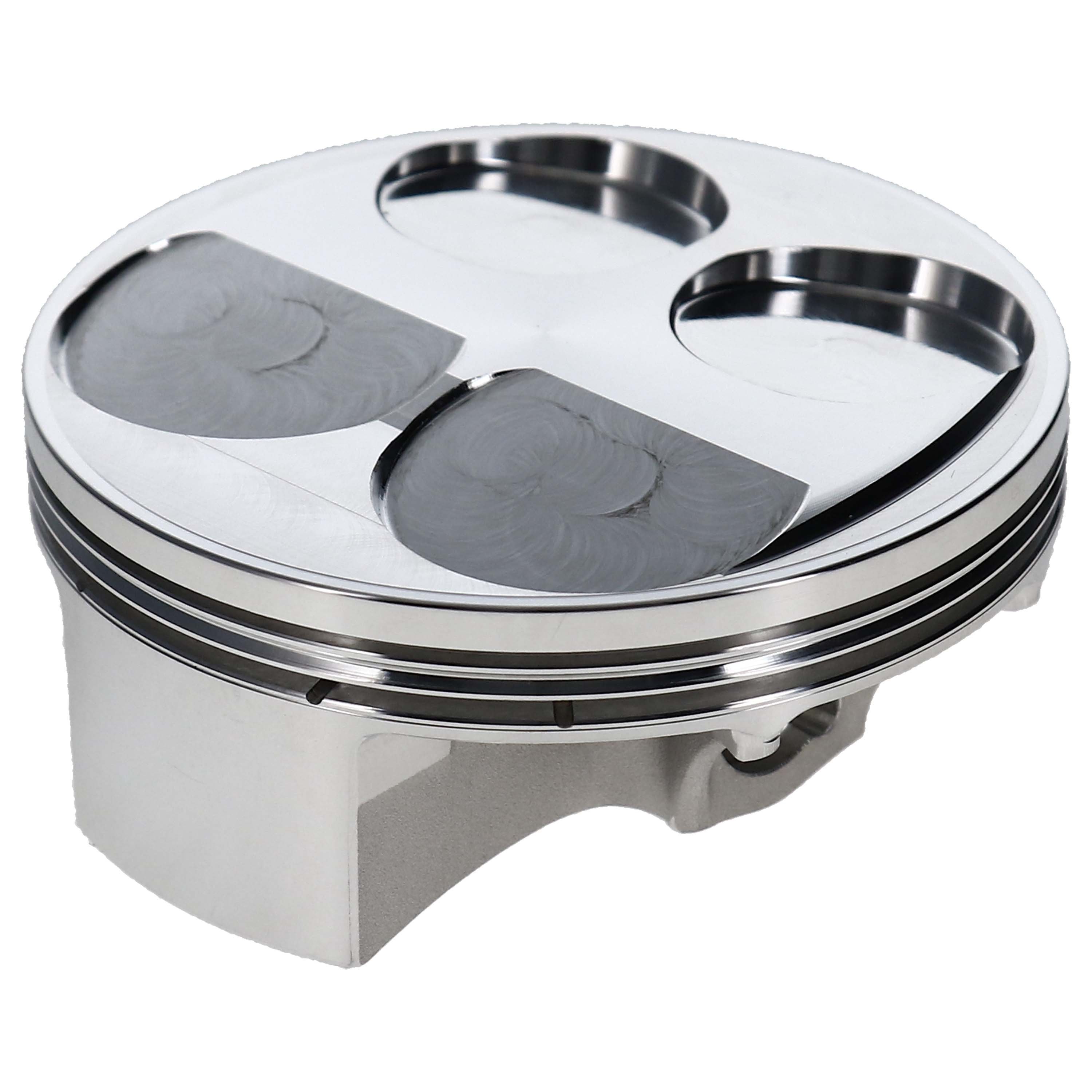

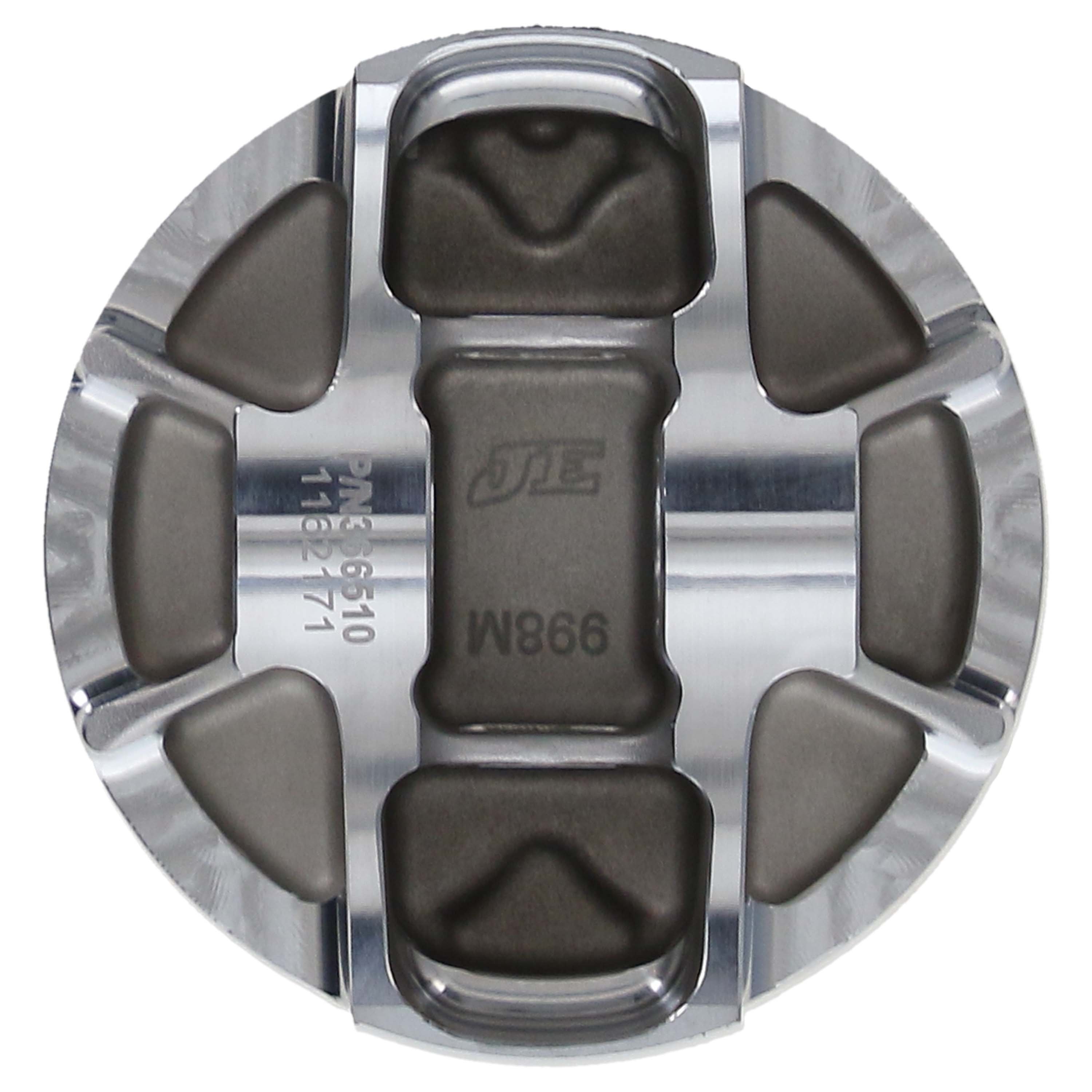

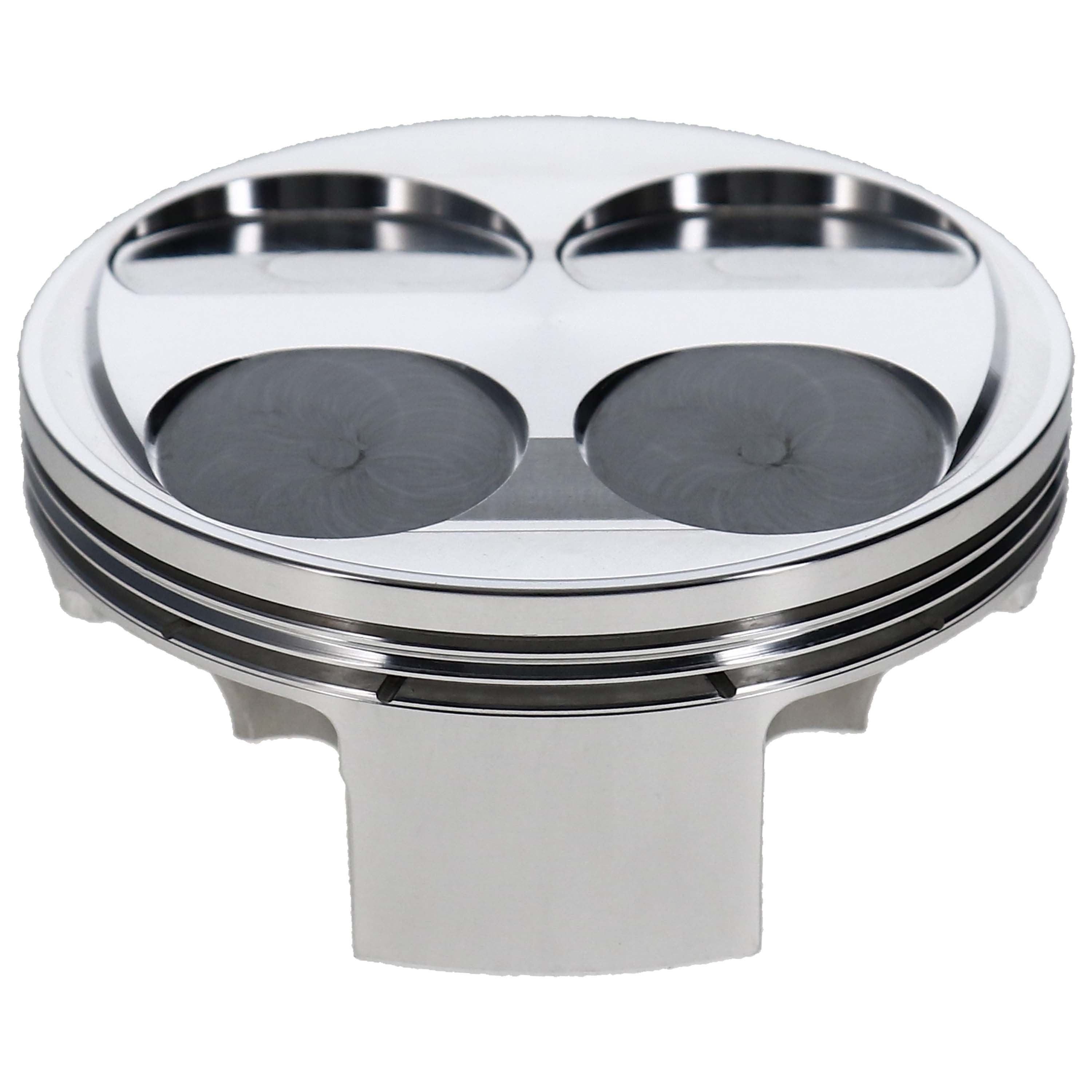

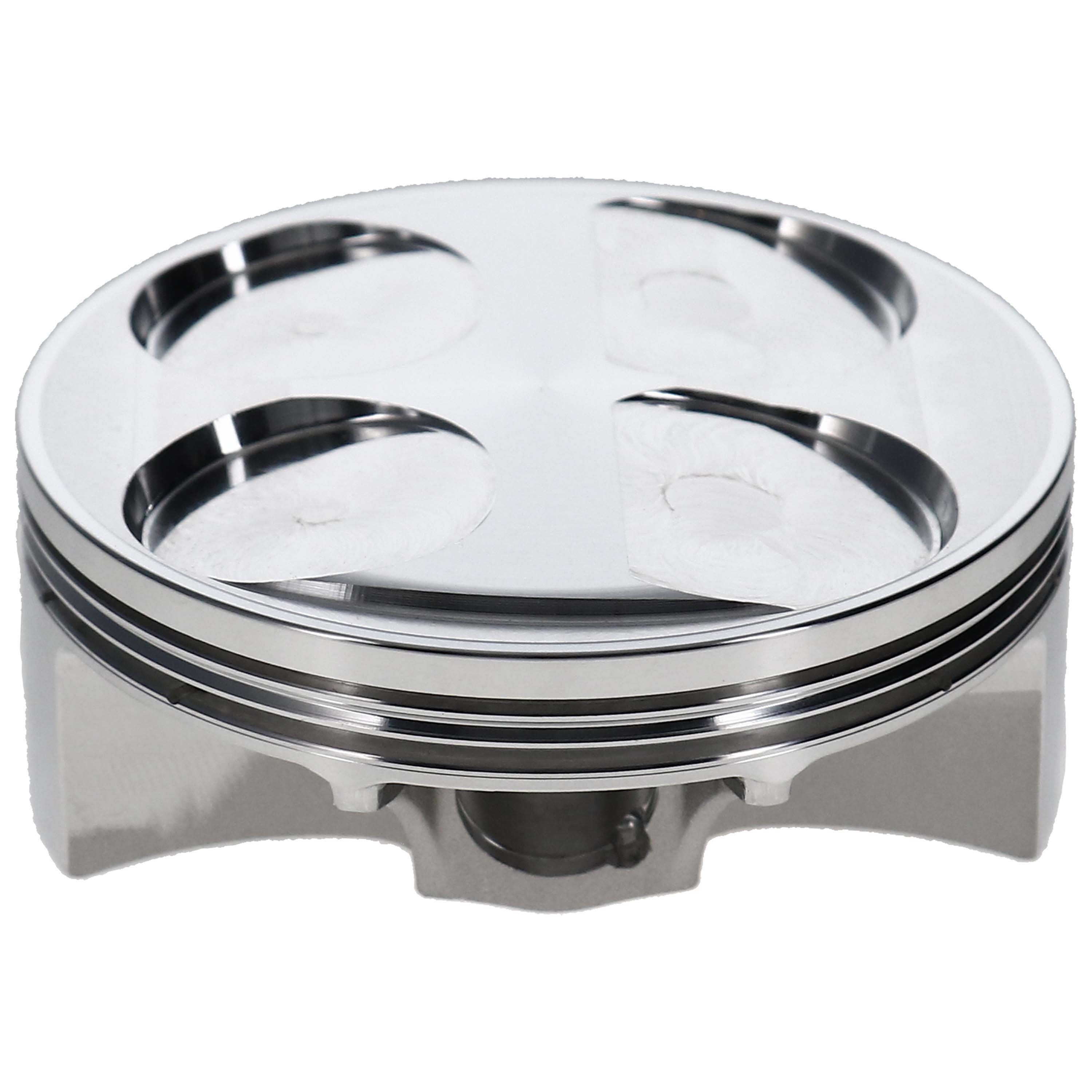

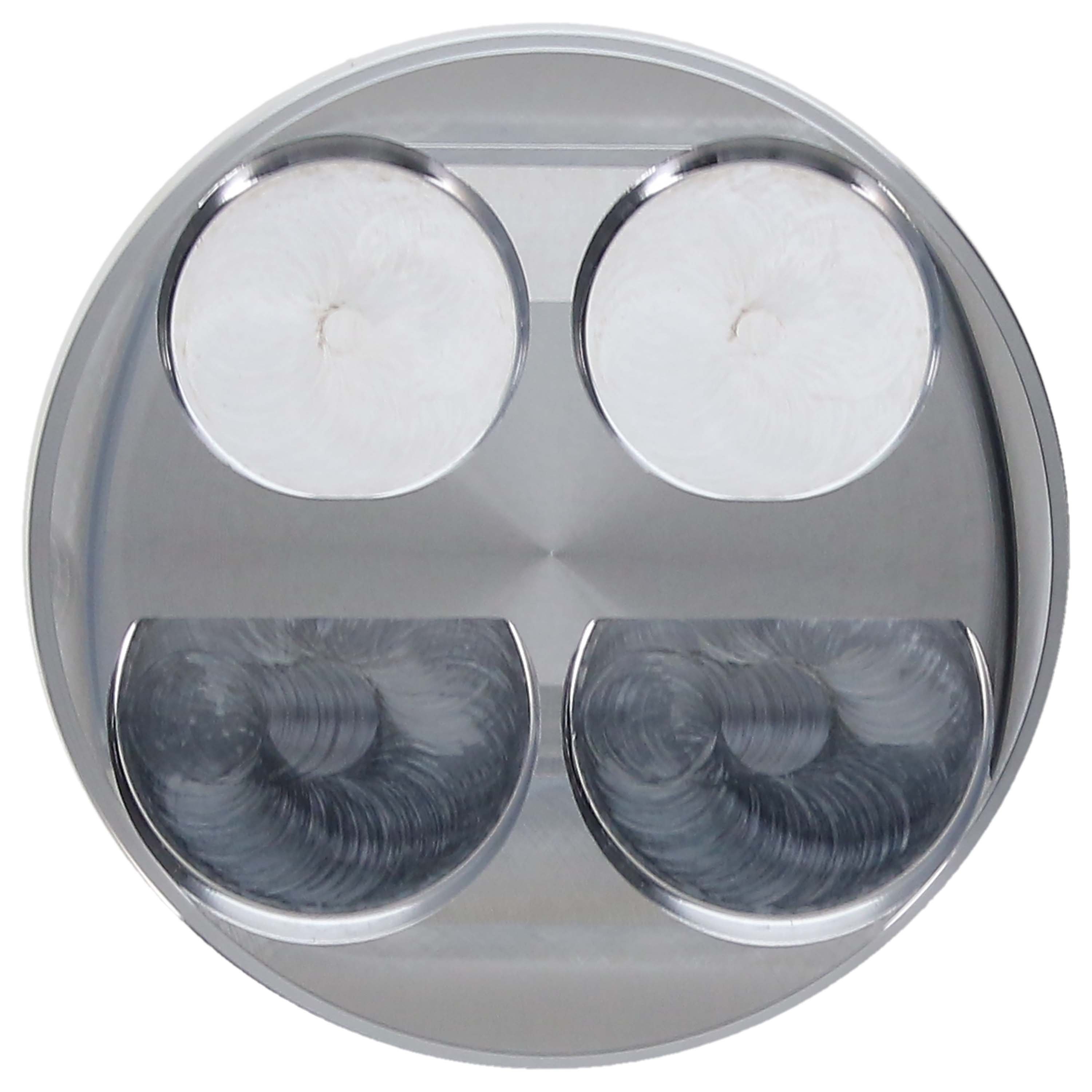

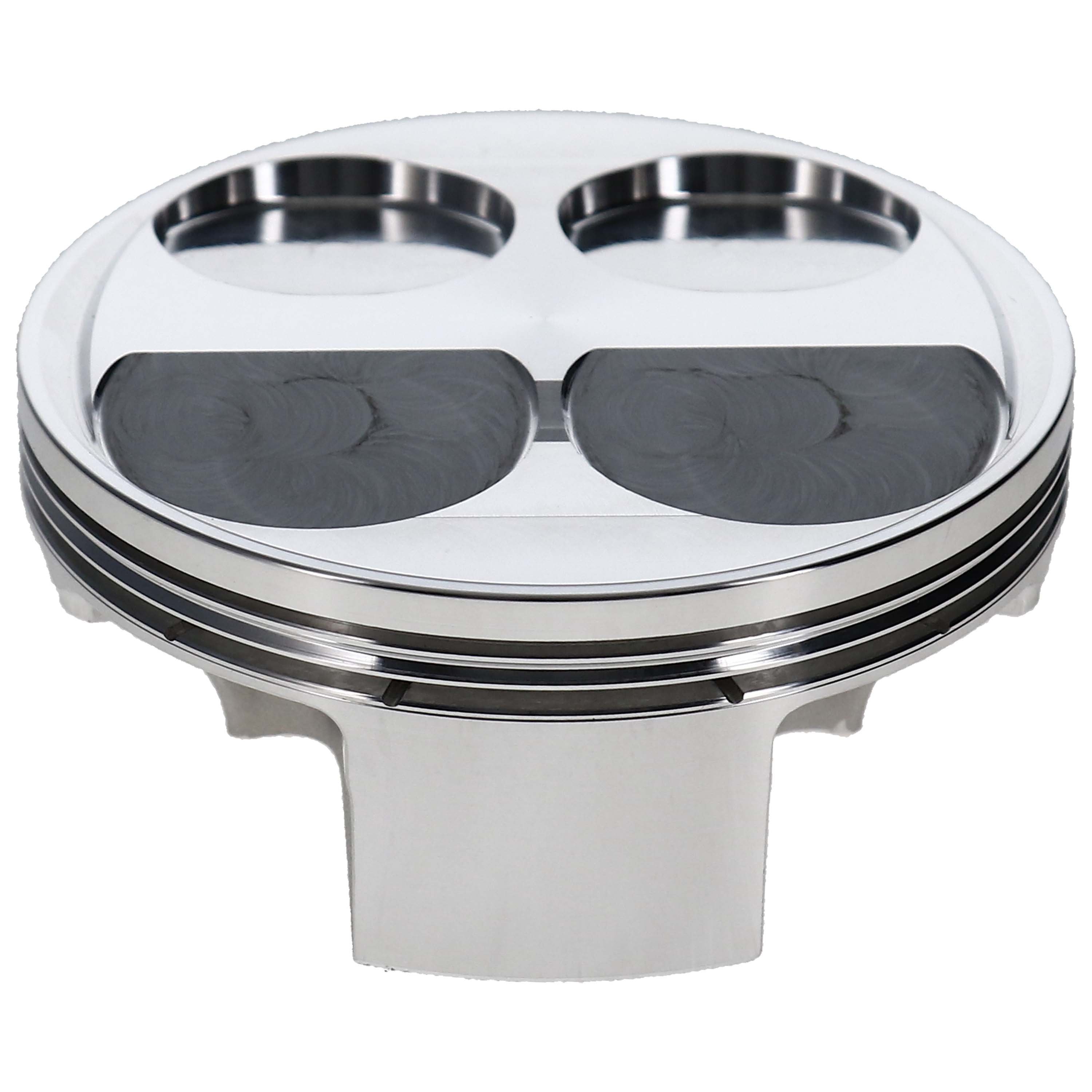

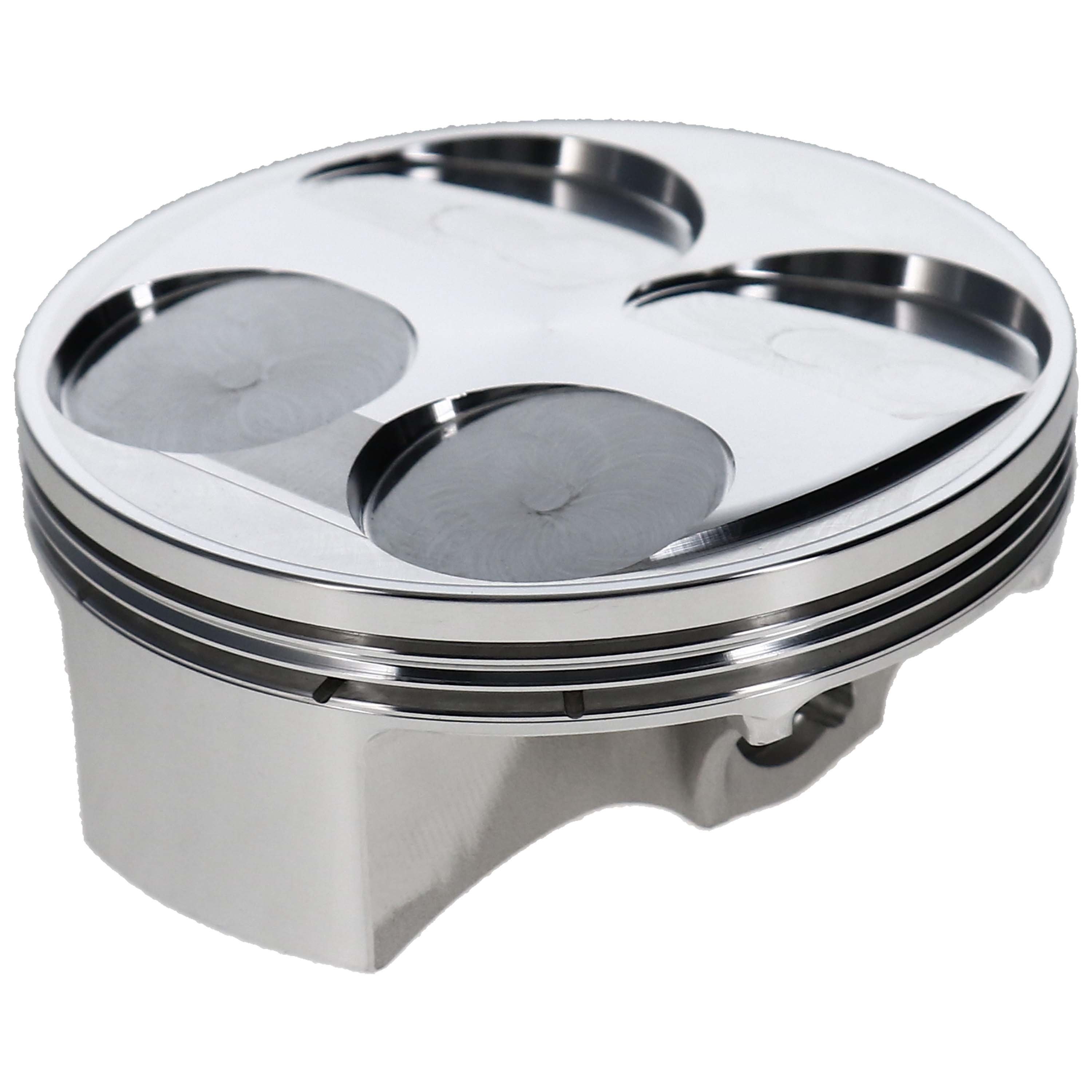

JE, Yamaha, YZ450F – Pro-Series, 13.50:1, 97.00 mm Bore, 1 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of Pro Series pistons for dirt bike and motorcycle engines. Engineered, forged and machined 100% in the USA, JE Pro Series pistons are designed for each specific engine and racing application with input from professional-level teams and racers. From motocross to off-road and everything in between, JE Pistons’ Pro Series are the ultimate forged piston choice for motocross and off-road competition.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Race-inspired two-ring design promotes quick revving and throttle response for noticeable power
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Categories: , , , ,

GTIN: 00193564221094

Piston Series

Pro Series
Cylinder Head

2018 YZ450F
Bore Diameter

97.00 MM
Compression Ratio Actual

13.50:1
Piston Head Type

Dome
Piston Volume

-1.50 CC
Piston Material

2618
Forging Type

FSR
Ring Set Included

Yes
Top Compression Ring Thickness

0.0480 IN
Oil Ring Thickness

0.0795 IN
Wrist Pin Material

9310 Nickel Carbon Steel Alloy
Wrist Pin Outer Diameter

0.708 IN
Wrist Pin Length

2.050 IN

Years

2019
2018

Makes

Yamaha

Models

YZ450F
Instructions: Enter a value in the un-shaded boxes below as they pertain to your engine.
Note: For pistons BELOW the block @ TDC – value in box must be a NEGATIVE number (-0.000)
Note: For pistons ABOVE the block @ TDC – value in box must be a POSITIVE number (0.000)
Note: For a DISH piston – value in box must be a NEGATIVE number (-0.0)
Note: For a DOME piston – value in box must be a POSITIVE number (0.0)
Note: Manipulate the DOME/DISH & PISTON to DECK volumes to get the ratio you want.
Enter the number of cylinders of your engine
Bore
Finished bore of your engine
Stroke
Stroke of your engines crankshaft
Rod Length
Ctr. to Ctr. length of your connecting rods
Gasket Bore
Head Gasket bore diameter
Comp. Gasket
Compressed Head Gasket thickness
Block Deck Height
Center of main bearing bore to top of block
Top Ring Down
Top of 1st ring to top of pistons(FLAT)
Chamber Volume
Cylinder Head chamber volume in CC’s
Dome/Dish Volume
DOME (-) or DISH (+) vol. (theoretical) in CC’s
Piston to Deck
Top of BLOCK to top of piston (FLAT) @ TDC
Click “Calculate” for dimension results.
Total Volume

Cylinder Volume
Total cylinder volume in CC’s =
Clearance Volume
All effective vol. above block deck @ TDC in CC’s =
Gasket Volume
Volume of your head gasket in CC’s =
Top Ring Volume
Total volume above the top ring @ TDC in CC’s =
Deck Volume
Volume of area above the pistons @ TDC in CC’s =
Piston Top Land
Piston top land diameter for volume calculations =
1/2 Stroke
1/2 stroke of your engine’s crankshaft in inches =
Compression Ht.
Ctr. of piston pin to top of piston (FLAT) in inches =
Cubic Inches
Cubic inch displacement of your engine =
For the given dimensions, your compression ratio
