Notice: Product Images may differ from the actual product. Image may be a representation of this item.

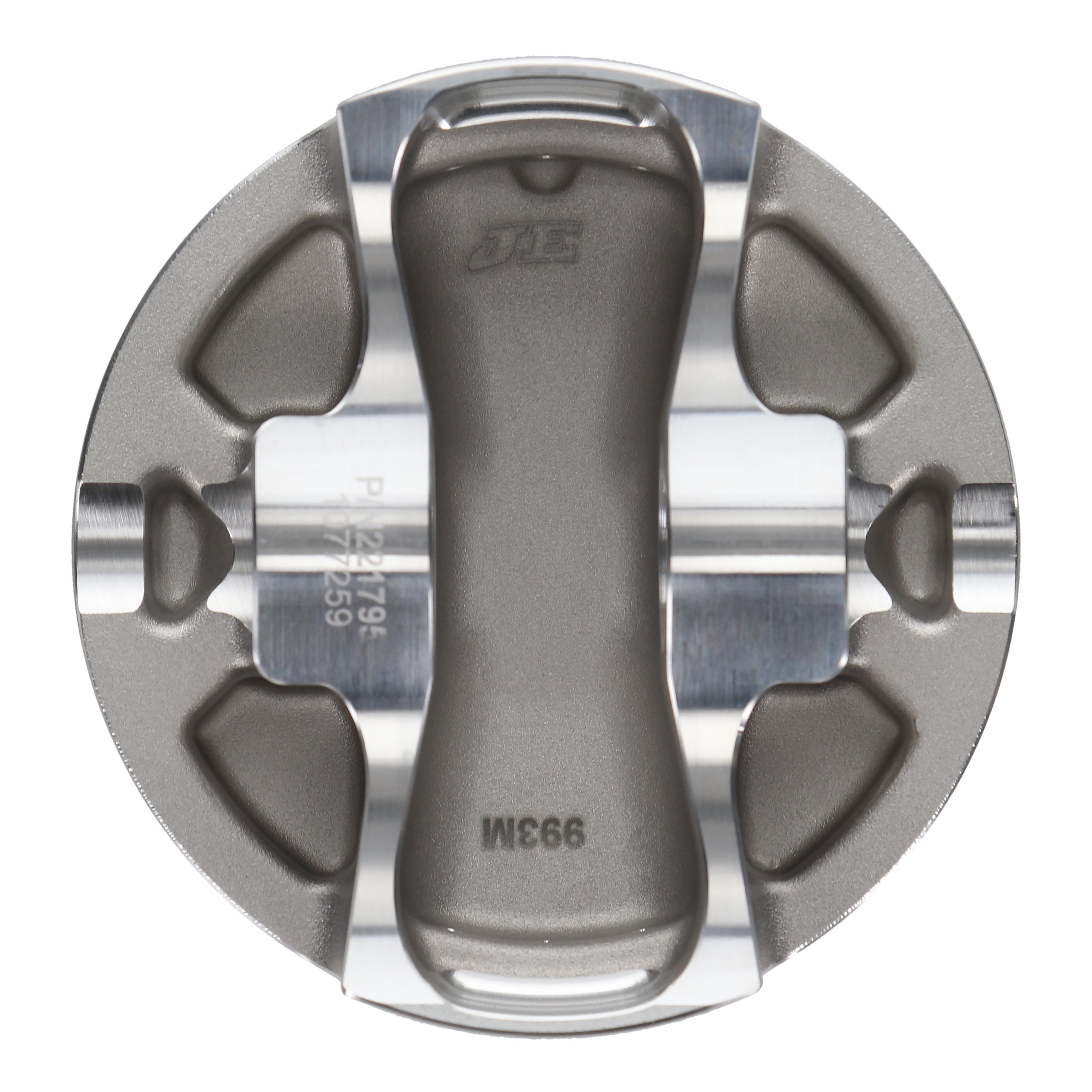

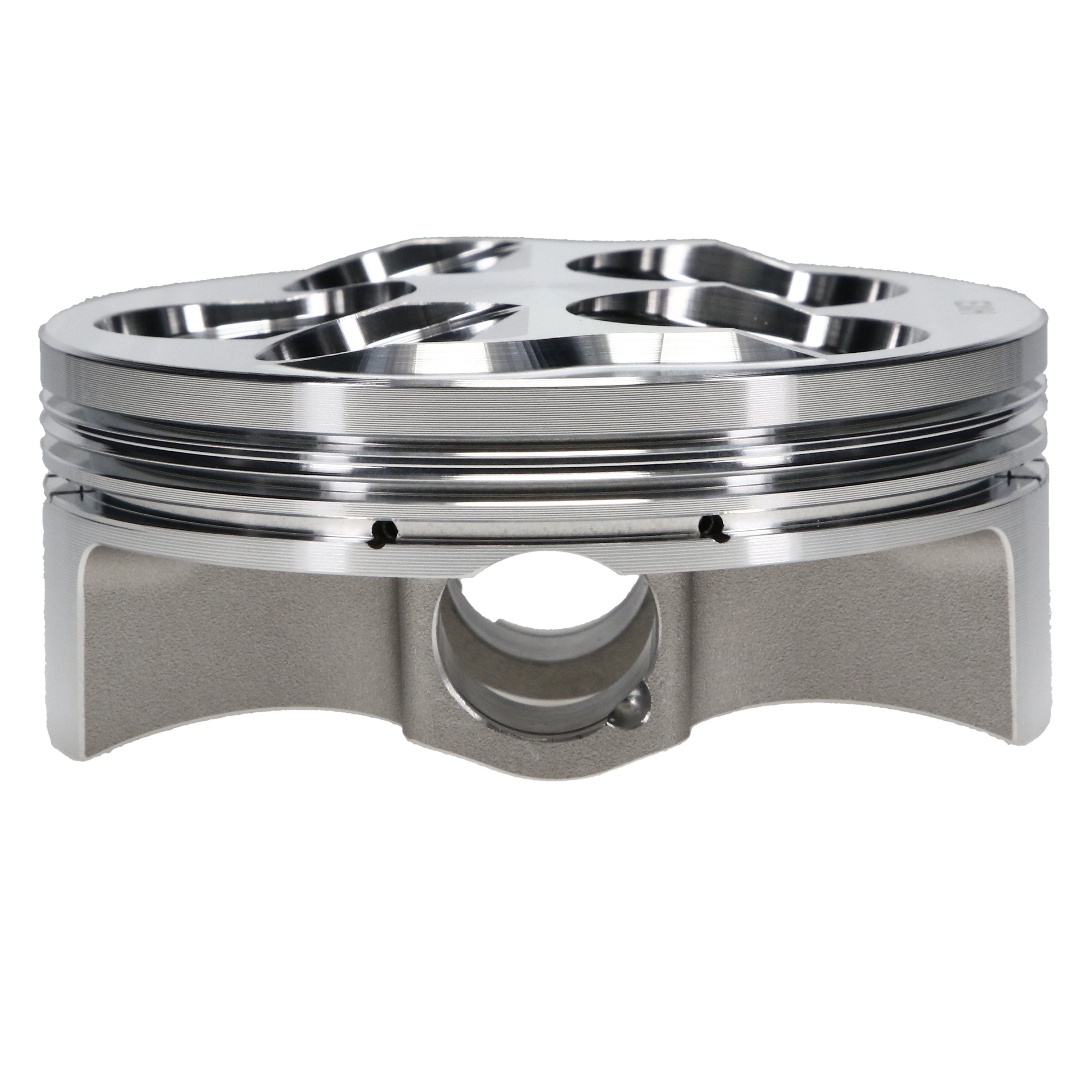

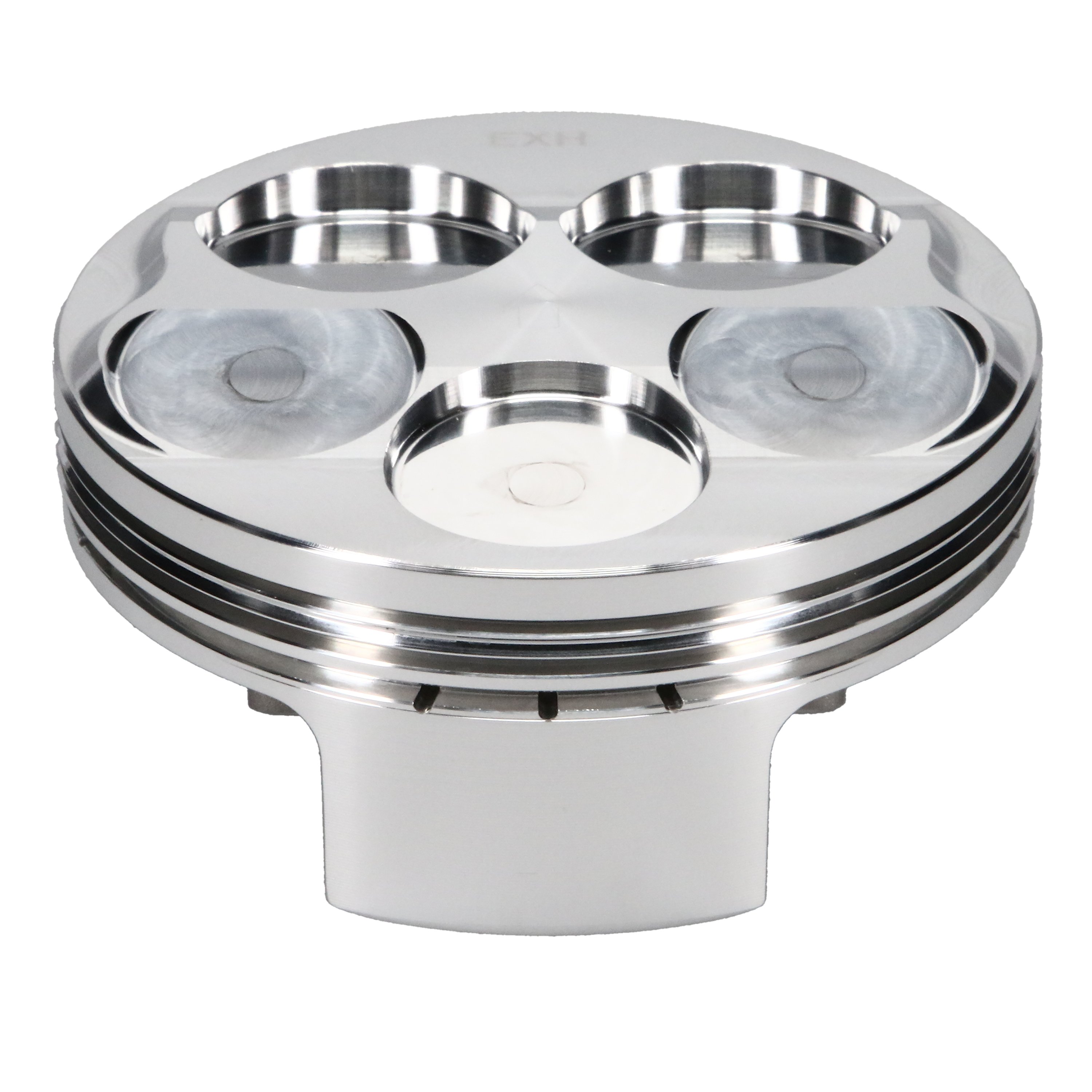

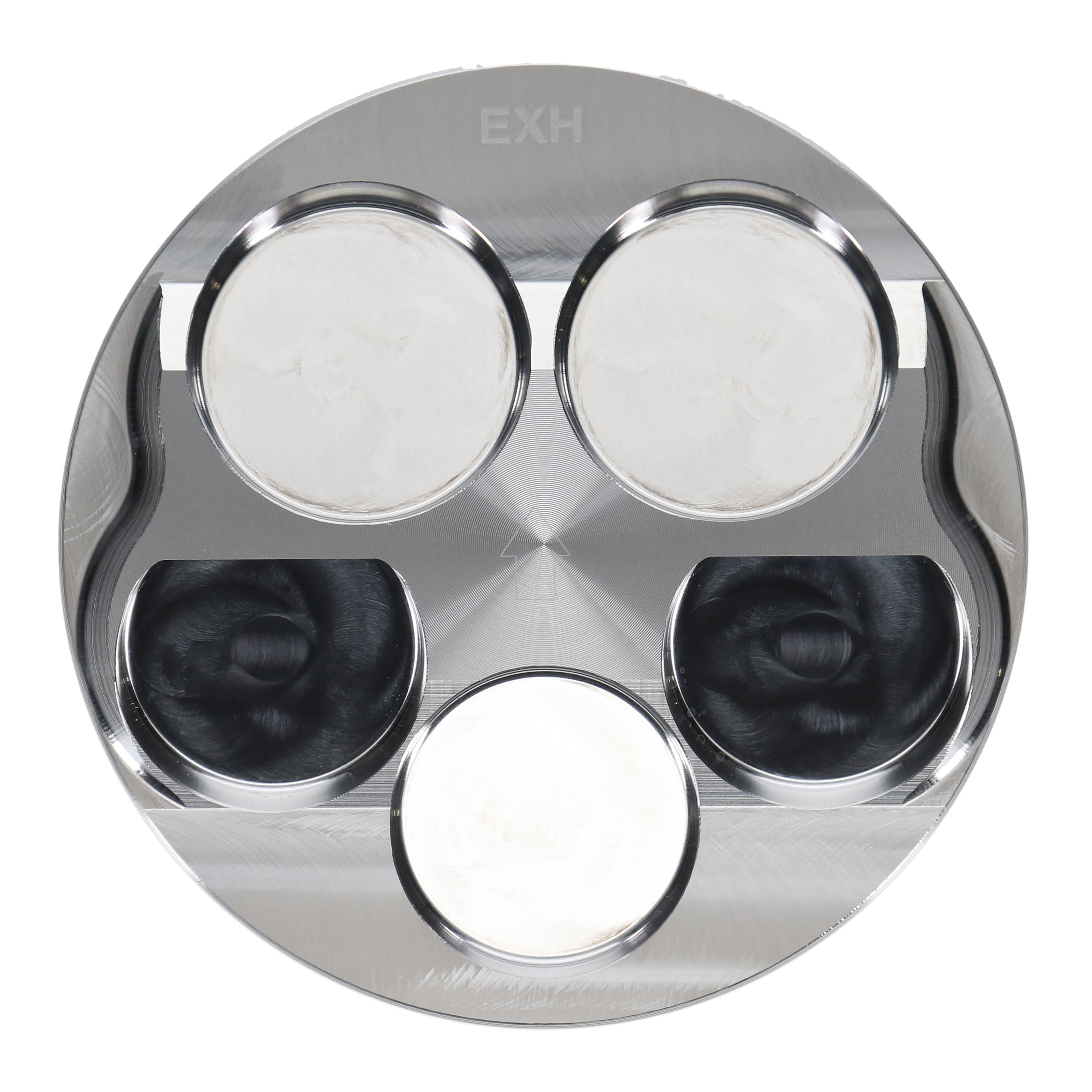

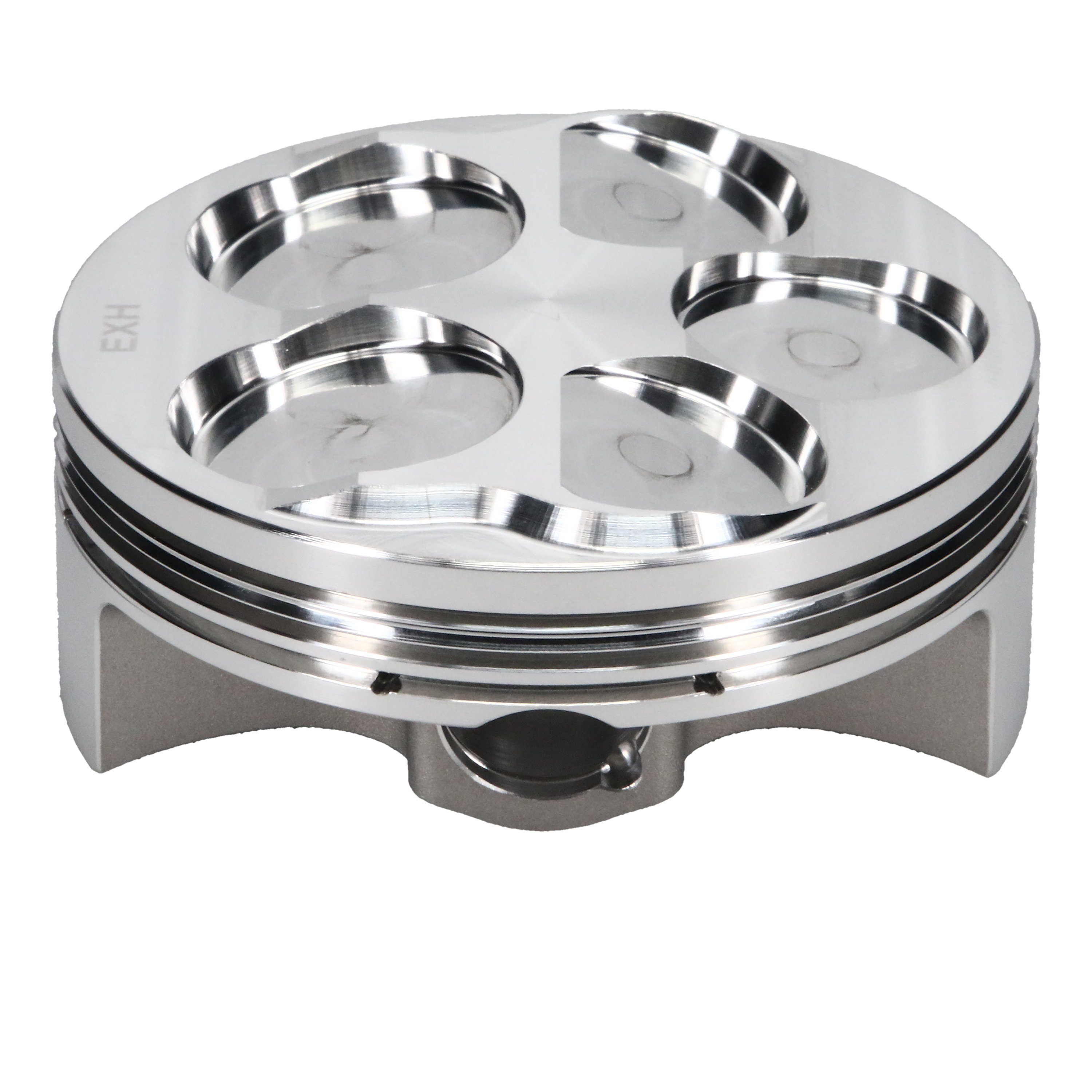

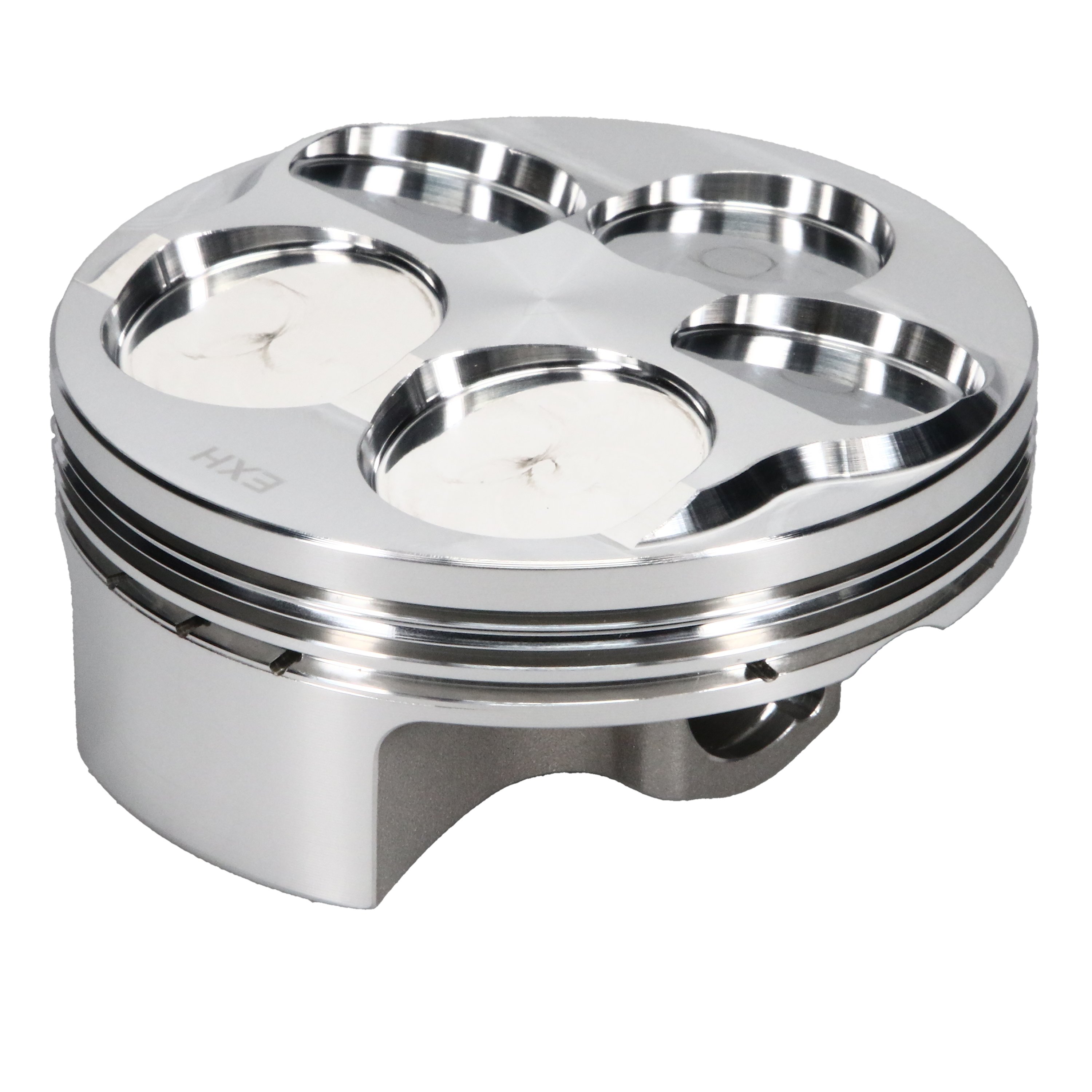

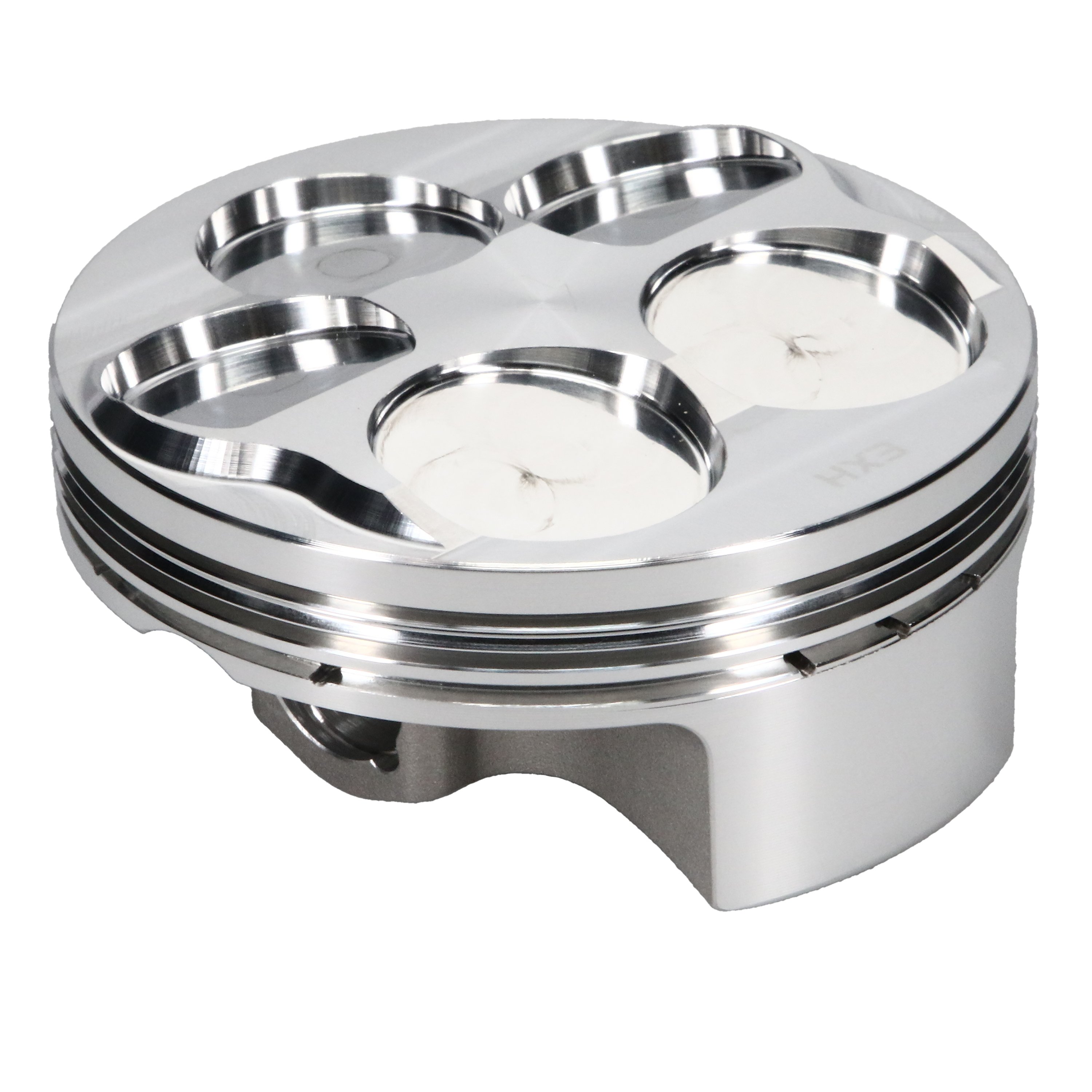

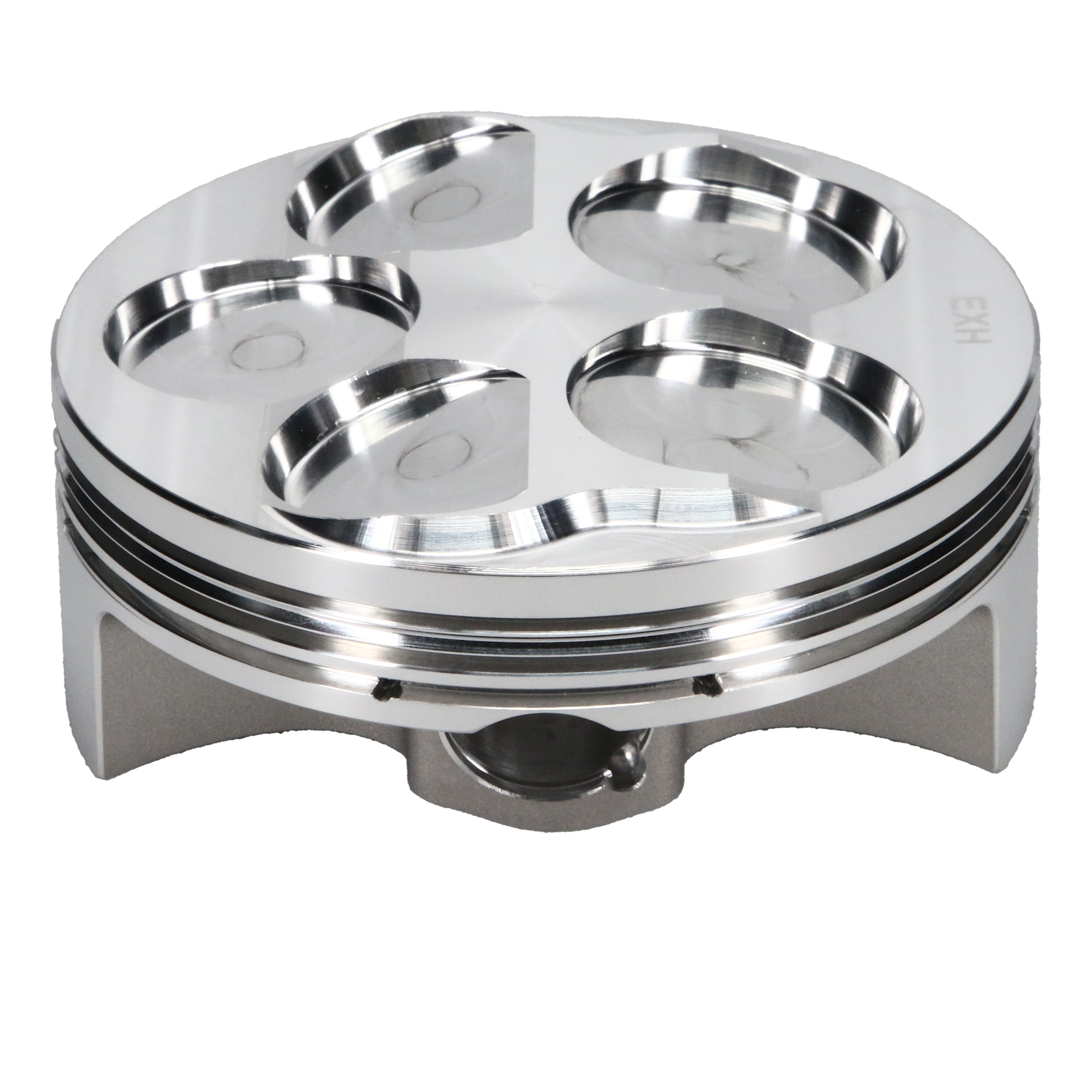

JE, Yamaha, 95.00 mm Bore, 1 Cyl. Kit

Your Price: $309.99

SKU: 221795

Please Allow Approximately 3 Weeks or Less for Shipping

–

JE, Yamaha, YFZ450, 13.50:1, 95.00 mm Bore, 1 Cyl. Piston Kit

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for ATV engines. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From motocross to dirt track and everything in between, JE Pistons’ performance is proven with every handful of throttle and wave of the checkered flag. Equip your quad with the best in forged pistons.

  • Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
  • Designed specifically for each engine and use application to provide optimized performance durability
  • Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
  • Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
  • Made 100% in the USA
Categories: , , ,

GTIN: 00193564027467

Piston Series

JE Pistons
Cylinder Head

YFZ 450
Bore Diameter

95.00 MM
Compression Ratio Actual

13.50:1
Piston Head Type

Dome
Piston Volume

0.00 CC
Piston Material

2618
Forging Type

FSR
Piston Average Weight

299 GR
Ring Set Included

Yes
Top Compression Ring Thickness

0.0480 IN
Second Compression Ring Thickness

0.0600 IN
Oil Ring Thickness

0.0795 IN
Wrist Pin Material

9310 Nickel Carbon Steel Alloy
Wrist Pin Length

2.050 IN
Wrist Pin Wall Thickness

0.160 IN

Years

2005
2004

Makes

Yamaha

Models

YFZ450
Instructions: Enter a value in the un-shaded boxes below as they pertain to your engine.
Note: For pistons BELOW the block @ TDC – value in box must be a NEGATIVE number (-0.000)
Note: For pistons ABOVE the block @ TDC – value in box must be a POSITIVE number (0.000)
Note: For a DISH piston – value in box must be a NEGATIVE number (-0.0)
Note: For a DOME piston – value in box must be a POSITIVE number (0.0)
Note: Manipulate the DOME/DISH & PISTON to DECK volumes to get the ratio you want.
Enter the number of cylinders of your engine
Bore
Finished bore of your engine
Stroke
Stroke of your engines crankshaft
Rod Length
Ctr. to Ctr. length of your connecting rods
Gasket Bore
Head Gasket bore diameter
Comp. Gasket
Compressed Head Gasket thickness
Block Deck Height
Center of main bearing bore to top of block
Top Ring Down
Top of 1st ring to top of pistons(FLAT)
Chamber Volume
Cylinder Head chamber volume in CC’s
Dome/Dish Volume
DOME (-) or DISH (+) vol. (theoretical) in CC’s
Piston to Deck
Top of BLOCK to top of piston (FLAT) @ TDC
Click “Calculate” for dimension results.
Total Volume

Cylinder Volume
Total cylinder volume in CC’s =
Clearance Volume
All effective vol. above block deck @ TDC in CC’s =
Gasket Volume
Volume of your head gasket in CC’s =
Top Ring Volume
Total volume above the top ring @ TDC in CC’s =
Deck Volume
Volume of area above the pistons @ TDC in CC’s =
Piston Top Land
Piston top land diameter for volume calculations =
1/2 Stroke
1/2 stroke of your engine’s crankshaft in inches =
Compression Ht.
Ctr. of piston pin to top of piston (FLAT) in inches =
Cubic Inches
Cubic inch displacement of your engine =
For the given dimensions, your compression ratio
