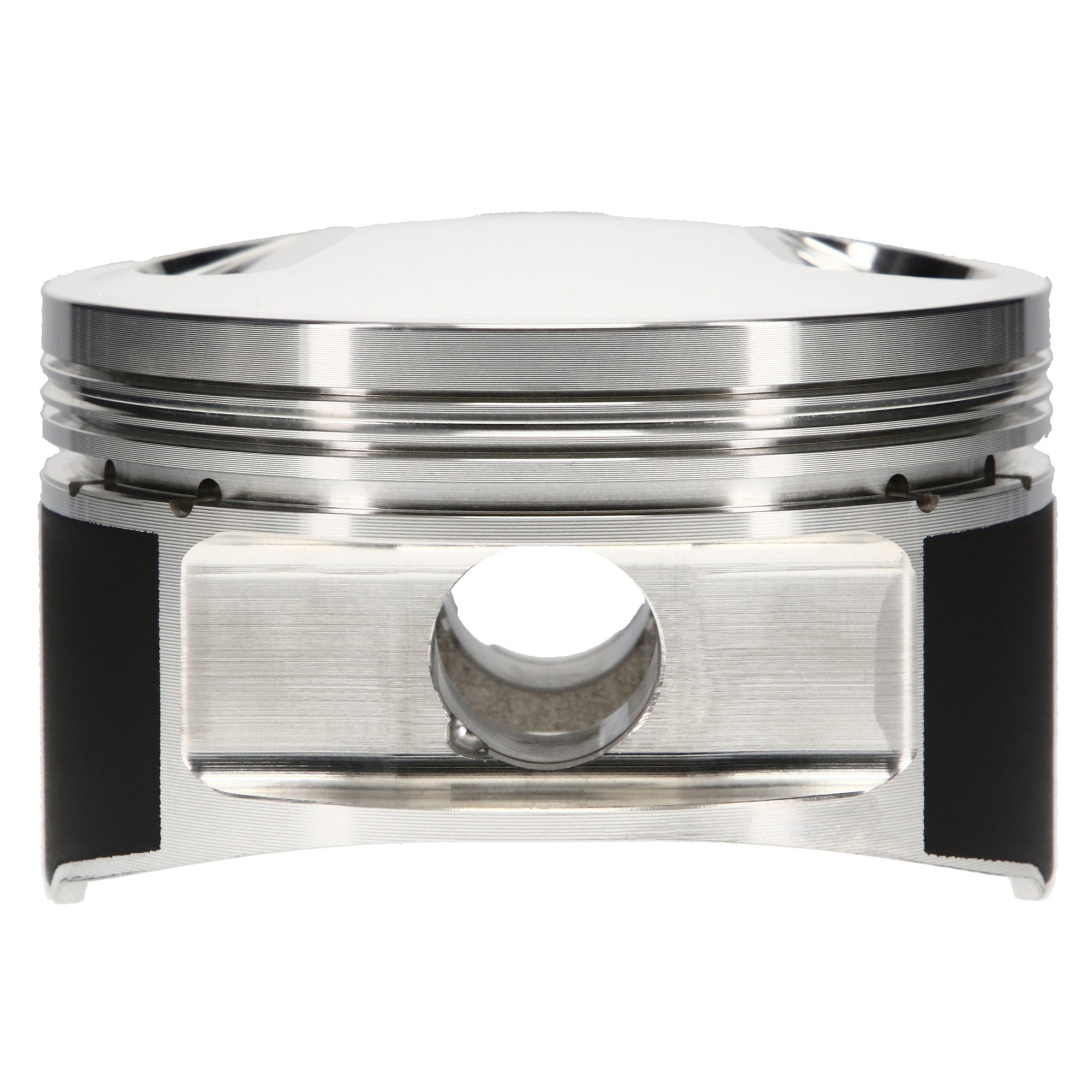

JE Pistons Ferrari 2.4L 246 V6 2V Piston Kit – 94.00 mm Bore – 1.181 in. CH, 17.70 CC
Your Price: $1,574.99
SKU: 362214
Please Allow Approximately 3 Weeks or Less for Shipping
–
JE, Ferrari, 2.4L 246 V6 2V, 3.701 in. Bore, 10.00:1, Dome, 6 Cyl. Piston Kit
As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons’ performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.
- Forged in the USA using 2618 aluminum, yielding high tensile strength needed for high-demand performance applications
- Designed specifically for each engine and use application to provide optimized performance durability
- Proprietary Forged Side Relief (FSR) forging design minimizes friction and power loss with reduced skirt width and saves additional weight with a shorter wrist pin
- Skirt coating (depending on application) reduces friction and wear on piston skirts and cylinder walls while simultaneously reducing operating noise
- Accumulator groove (depending on application) helps reduce pressure from combustion gases, reducing ring fluttering and improving ring seal for consistent power
- Includes high-quality wrist pins, locks, and JE Pro Seal premium piston rings
- Made 100% in the USA
GTIN: 00193564036162
Piston Series | JE Pistons |
---|---|
Cylinder Head | 246 DINO |
Bore Diameter | 94.00 MM |
Piston Head Type | Dome |
Compression Height | 1.181 IN |
Piston Volume | 17.70 CC |
Piston Material | 2618 |
Piston Quantity | 6 |
Forging Type | Round |
Piston Average Weight | 418 GR |
Ring Set Included | Yes |
Top Compression Ring Thickness | 0.0400 IN |
Second Compression Ring Thickness | 0.0480 IN |
Oil Ring Thickness | 0.111 IN |
Wrist Pin Outer Diameter | 0.787 IN |
Wrist Pin Length | 2.500 IN |
Wrist Pin Wall Thickness | 0.140 IN |
Makes
Engines
Instructions: Enter a value in the un-shaded boxes below as they pertain to your engine.
Note: For pistons BELOW the block @ TDC – value in box must be a NEGATIVE number (-0.000)
Note: For pistons ABOVE the block @ TDC – value in box must be a POSITIVE number (0.000)
Note: For a DISH piston – value in box must be a NEGATIVE number (-0.0)
Note: For a DOME piston – value in box must be a POSITIVE number (0.0)
Note: Manipulate the DOME/DISH & PISTON to DECK volumes to get the ratio you want.
